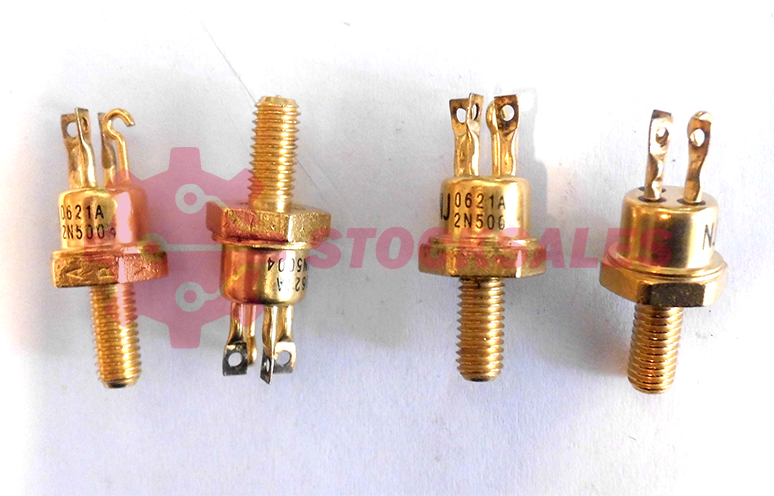

Type Designator: 2N5004
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 33 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN: 70
Noise Figure, dB: –
Package: TO59
