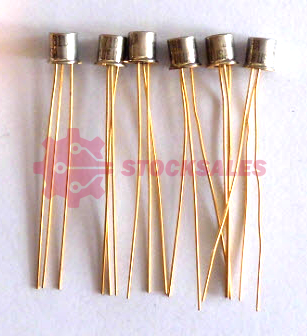

Type Designator: 2N718A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 75 V
Maximum Collector-Emitter Voltage |Vce|: 32 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 25 pF
Forward Current Transfer Ratio (hFE), MIN: 40
Noise Figure, dB: –
Package: TO18
