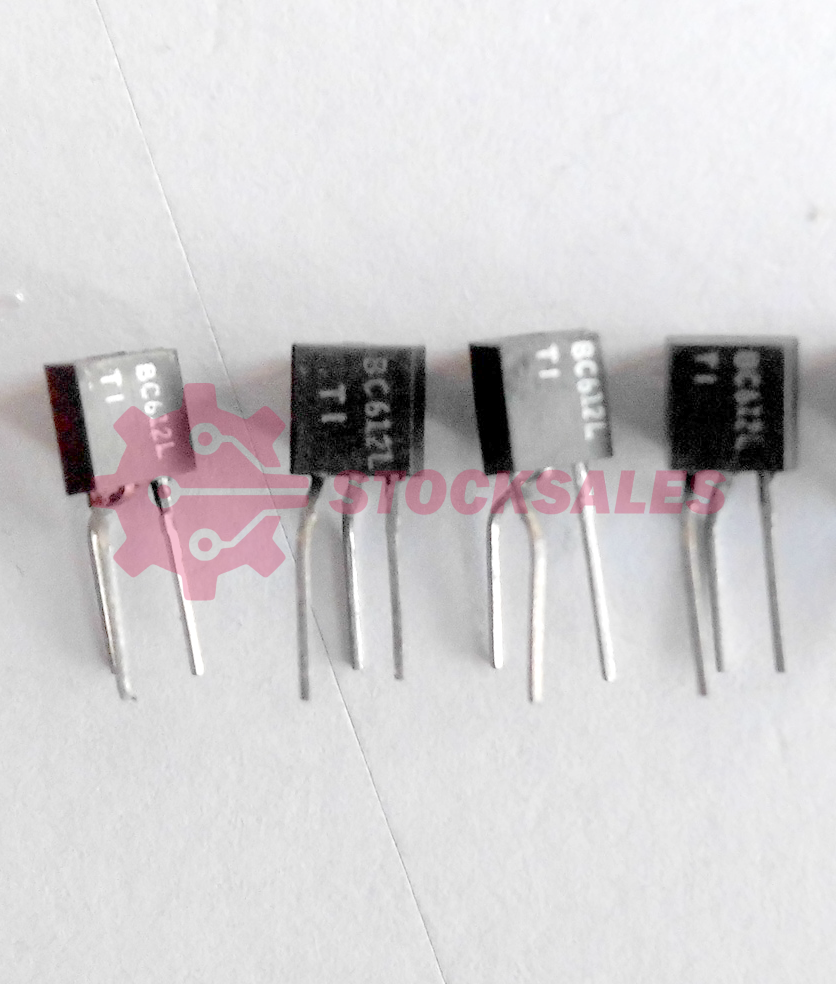

Type Designator: BC612L
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 75 V
Maximum Collector-Emitter Voltage |Vce|: 70 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: –
Package: TO92
