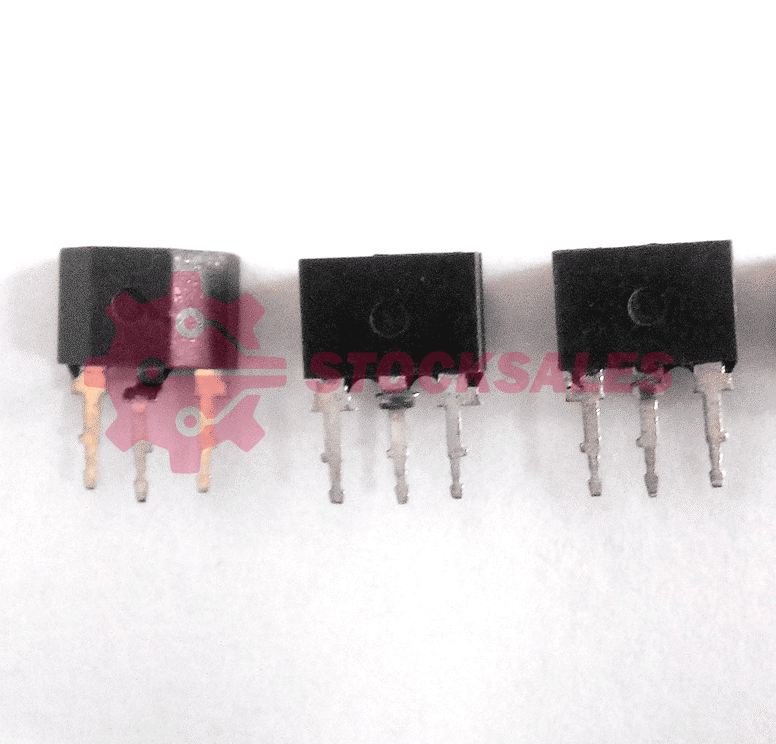

Type Designator: BCX34
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.73 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 30 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 80 MHz
Collector Capacitance (Cc): 12 pF
Forward Current Transfer Ratio (hFE), MIN: 90
Noise Figure, dB: –
Package: X09
