| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| D-Sub, D-Shaped Connectors | |
| D-Sub Connector Assemblies | |
| Mfr | ITT Cannon, LLC |
| Series | 24308-Style, D*MM |
| Package | Bulk |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount – Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A |
| Backset Spacing | – |
| Features | – |
| Voltage Rating | – |
| Color | Black |
| Contact Form | Machined |
| Dielectric Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Wire Gauge | – |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 150°C |
D-Sub, کانکتور - Connector
DE-9PL
تماس جهت استعلام قیمت واردات

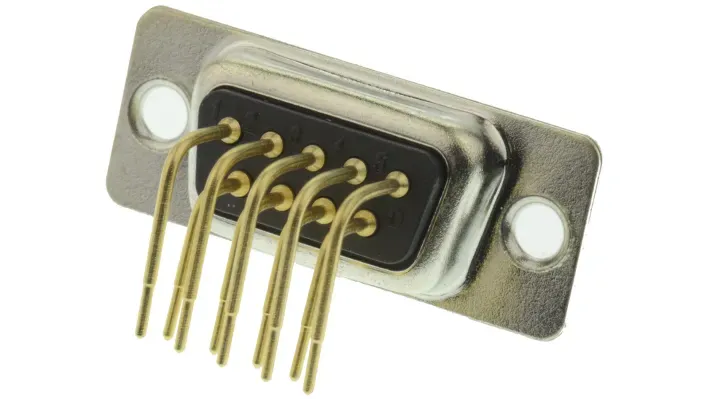

9 Position Way Right Angle Through Hole D-Sub Plug, Male Pins Connector
در انبار موجود نمی باشد
