| Type | HRS4H-S-DC12V-C |
| Coil nominal voltage | 12 V DC |
| Min. pick-up voltage | 8.4 V DC |
| Control mode | monostable, 1 coil |
| Resistance (coil) | 400 Ω |
| Coil voltage rating | 360 mW |
| Contact type | 1 change-over |
| Contact material | Ag |
| Switching voltage (max.) | 28 V DC, 250 V AC |
| Switching current (max.) | 15 A |
| Max. switching capacity | 280 W, 2500 VA |
| Connection | Solder pins |
| Response time | 10 ms |
| Fall time | 5 ms |
| Electrical lifespan | 100 000 Switching cycles |
| Durability | 1000 0000 switching cycles |
| Min. temperature | -40 °C |
| Max. temperature | +85 °C |
| Length | 19 mm |
| Width | 15.5 mm |
| Height | 15.8 mm |
| Dim | (L x W x H) 19 x 15.5 x 15.8 mm |
| Content | 1 pc(s) |
| RoHS-compliant | Yes |
| Product type | PCB relay |
رله - Relay

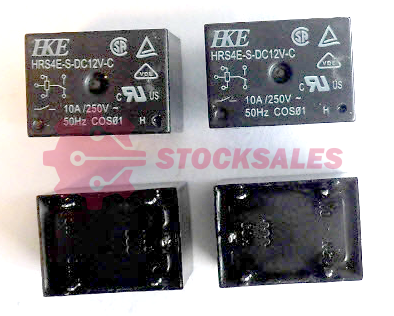

HRS4E-S-DC12V-C
140,000 تومان
HKE HRS4H-S-DC12V-C PCB Power Relay 12V DC 10A
دسترسی: 100 در انبار
