| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| D-Sub, D-Shaped Connectors | |
| D-Sub Connector Assemblies | |
| Mfr | Cinch Connectivity Solutions |
| Series | Military, MIL-C-24308, M24308 |
| Package | Bulk |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 1 (DE, E) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Shell Material, Finish | Steel, Yellow Chromate Plated Cadmium |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | – |
| Material Flammability Rating | – |
| Current Rating (Amps) | 5A |
| Backset Spacing | – |
| Features | – |
| Voltage Rating | – |
| Color | Green |
| Contact Form | Machined |
| Dielectric Material | Diallyl Phthalate (DAP), Glass Filled |
| Wire Gauge | – |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -65°C ~ 125°C |
| Base Product Number | M24308/1 |
| Alternative | DEMM-9S, DEMM9S |
D-Sub, کانکتور - Connector
M24308/1-1
تماس جهت استعلام قیمت واردات

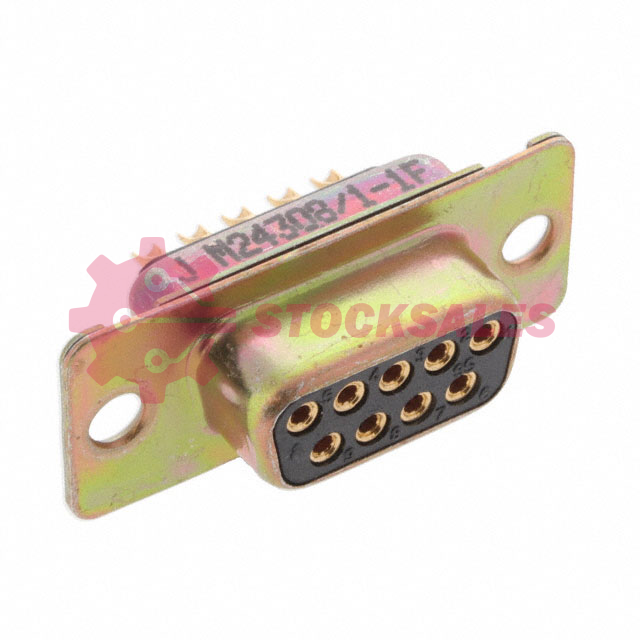

9 Position D-Sub Receptacle, Female Sockets Connector
در انبار موجود نمی باشد
توضیحات
توضیحات تکمیلی
| سازنده |
|---|
