| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| D-Sub, D-Shaped Connectors | |
| D-Sub Connector Assemblies | |
| Mfr | CINCH |
| Alternative | DBU25S – 24308-Style, D*MM |
| Package | Bulk |
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | – |
| Current Rating (Amps) | 7.5A |
| Features | – |
| Voltage Rating | – |
| Finish | Zinc |
| Dielectric Material | Polyester |
| Operating Temperature | -55°C ~ 150°C |
| Base Product Number | M24308/1 |
| Alternatives | DBMM25S, DBMM-25S |
D-Sub, کانکتور - Connector
M24308/1-3Z
تماس جهت استعلام قیمت واردات

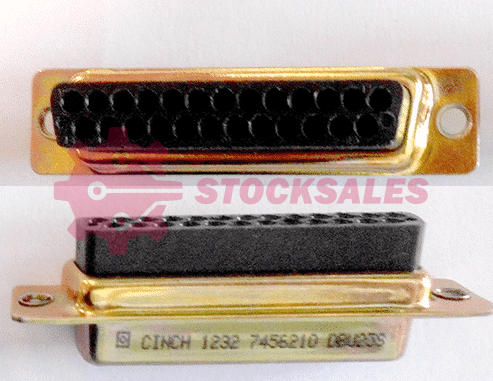

25 Position D-Sub Receptacle, Female Sockets Connector GOLD PLATED
در انبار موجود نمی باشد
