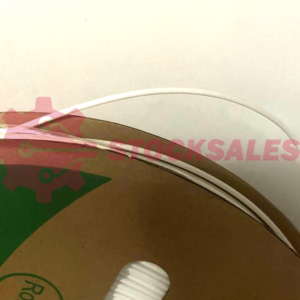

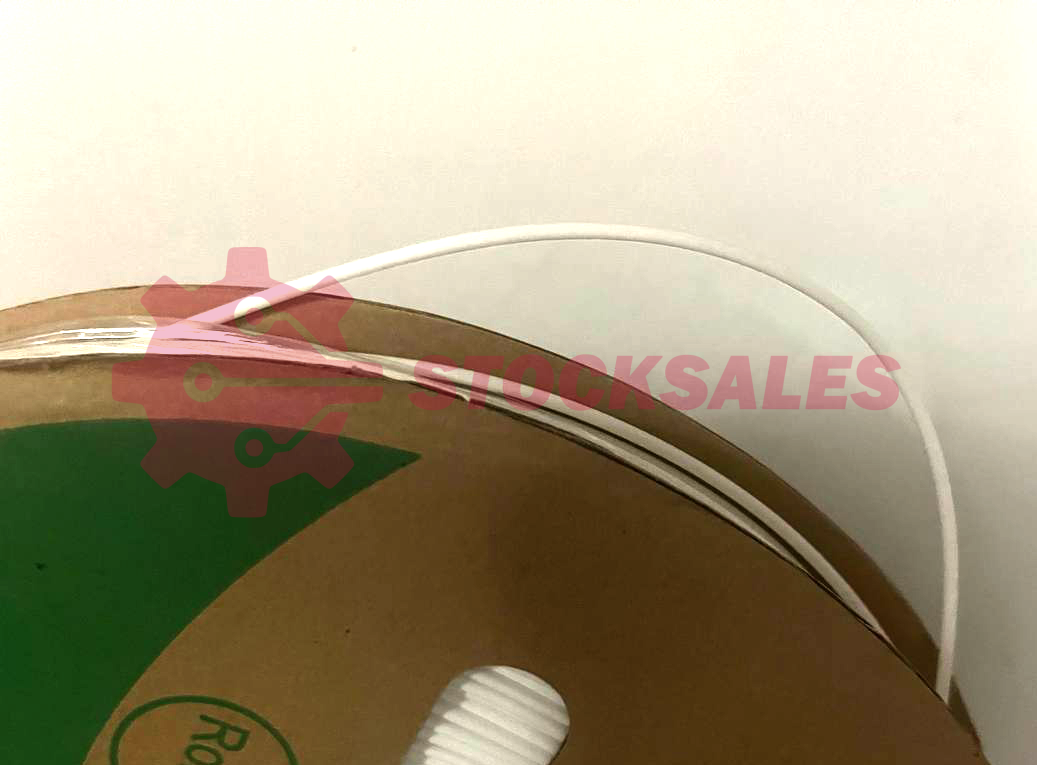

روکش حرارتی (شیرینگ) – بسته رول ۲۰۰ متری – رنگ سفید
Features:
● Flexible
● Flame retardant
● Continuous operating temperature:-55℃~125℃
● Fully shrink temperature:≥125℃
● RoHS compliant
Technical Data
| Property | Test Method | Typical Performance |
|---|---|---|
| Tensile strength(MPa) | ASTM D2671 | ≥10.4 |
| Ultimate elongation(%) | ASTM D2671 | ≥ 200 |
| Tensile strength after heat aged (Mpa) | 1 58 ℃X168h | ≥7.3 |
| Ultimate elongation after heat aged (%) | 1 58 ℃X168h | ≥100 |
| Longitudinal change | ASTM D2671 | -5%~+5% |
| Flammability | ASTM D2671 C method | VW-1 |
| Voltage withstand | UL 224, 2500V, 60s | No breakdown |
| Dielectric strength (kV/mm) | ASTM D 149 | ≥15 |
| Volume resistivity (Ω·cm) | ASTM D 876 | ≥1014 |
| Size | As Supplied | After Recovery | Standard Package | ||
|---|---|---|---|---|---|
| Inch | mm |
Inner Diameter mm |
Inner Diameter mm |
Wall Thickness mm |
Spool Length M/spool |
| 1.5 | 2.0±0.2 | 0.85 | 0.32 | 200 | |
