| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74ALS |
| Package | Tube |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 12:00 AM |
| Features | – |
| Voltage – Supply | 4.5V ~ 5.5V |
| Current – Output High, Low | 400µA, 8mA |
| Input Logic Level – Low | 0.8V |
| Input Logic Level – High | 2V |
| Max Propagation Delay @ V, Max CL | 14ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |

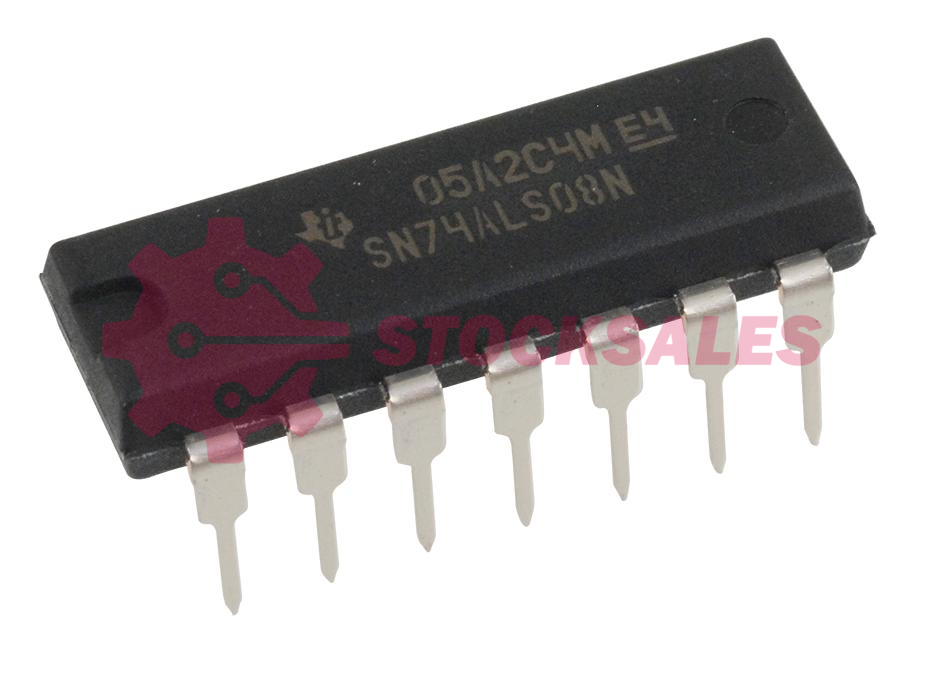

| Base Product Number | 74ALS08 |
توضیحات
توضیحات تکمیلی
| سازنده | |
|---|---|
| طرح بسته بندی | DIP-14 |
