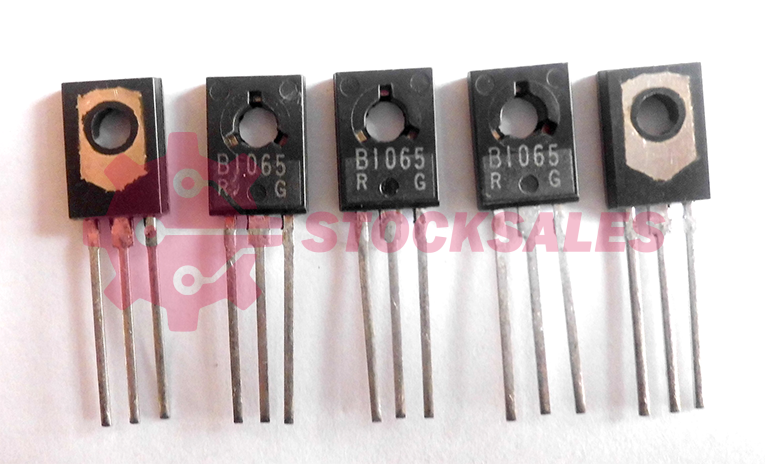

Type Designator: 2SB1065
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 175 °C
Forward Current Transfer Ratio (hFE), MIN: 120
Noise Figure, dB: –
Package: TO126
