| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | 3M |
| Series | 3000 |
| Package | Bulk |
| Product Status | Obsolete |

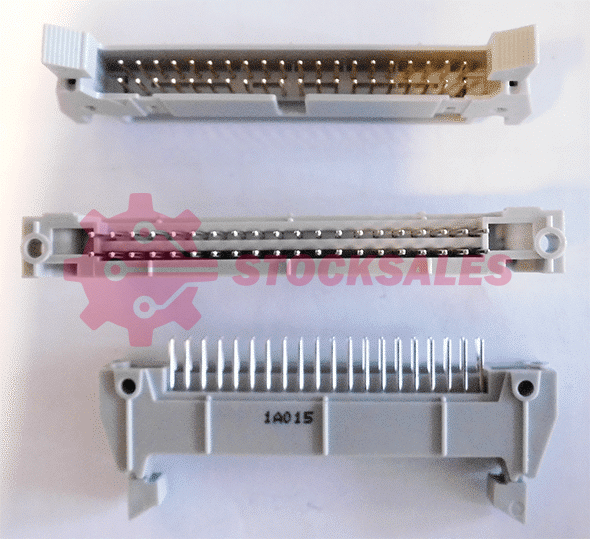

| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch – Mating | 0.100″ (2.54mm) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded – 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Contact Length – Mating | 0.240″ (6.10mm) |
| Contact Length – Post | 0.155″ (3.94mm) |
| Overall Contact Length | 0.695″ (17.65mm) |
| Insulation Height | 0.680″ (17.27mm) |
| Contact Shape | Square |
| Contact Finish – Mating | Gold |
| Contact Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin-Lead |
| Contact Material | Copper Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | – |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | – |
| Mated Stacking Heights | – |
| Contact Finish Thickness – Post | 200.0µin (5.08µm) |
| Applications | – |
| Base Product Number | 3432 |
