| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Circular Connectors | |
| Circular Connector Assemblies | |
| Mfr | Amphenol Industrial Operations |
| Series | MIL-DTL-26482 Series I, PT |
| Package | Bag |
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 11 |
| Shell Size – Insert | 18-Nov |
| Shell Size, MIL | – |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish – Mating | Gold |
| Color | Olive Drab |
| Ingress Protection | – |
| Material Flammability Rating | – |
| Features | Backshell, Cable Clamp, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | – |
| Voltage Rating | – |
| Cable Opening | 0.625″ (15.88mm) |
| Operating Temperature | -55°C ~ 125°C |
| Backshell Material, Plating | Aluminum, Olive Drab Cadmium |
| Contact Material | Copper Alloy |
| Contact Finish Thickness – Mating | – |
| Insert Material | Neoprene |
| Applications | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit |
| Base Product Number | PT00A |
گرد - Circular

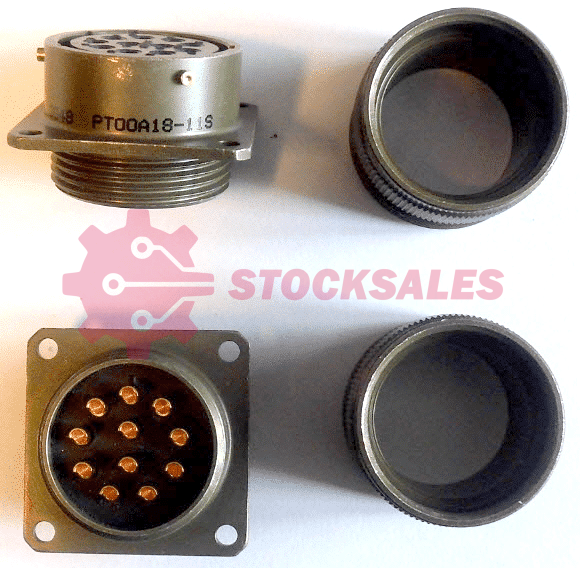

PT00A18-11S
14,000,000 تومان
11 Position Circular Connector Receptacle, Female Sockets Solder Cup
دسترسی: 2 در انبار
