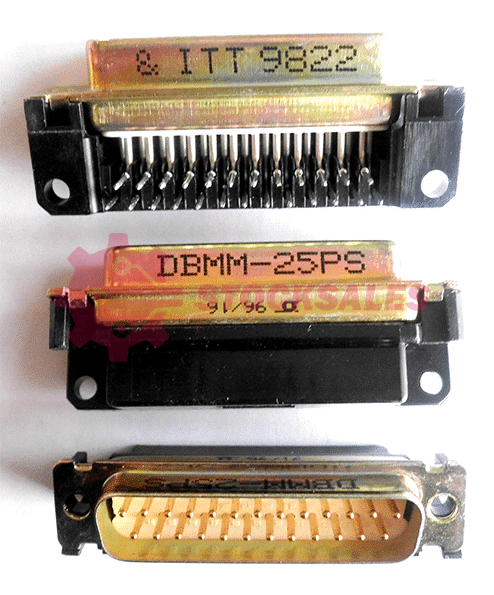

D-Sub, سوکت - SocketDBMM-25PS
تماس جهت استعلام قیمت واردات
Connector D-Subminiature PIN 25 POS Solder RA Thru-Hole 25 Terminal 1 Port
در انبار موجود نمی باشد
| EU RoHS |
Not Compliant |
| ECCN (US) |
EAR99 |
| Part Status |
Active |
| HTS |
8536.69.40.51 |
| Automotive |
No |
| PPAP |
No |
| Type |
D-Subminiature |
| Gender |
PL |
| Number of Contacts |
25 |
| Number of Terminals |
25 |
| Number of Ports |
1 |
| Number of Rows |
2 |
| Termination Method |
Solder |
| Body Orientation |
Right Angle |
| Contact Gender |
PIN |
| Maximum Current Rating (A) |
7.5 |
| Maximum Contact Resistance (mOhm) |
7.5 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Mating Cycle (Cycles) |
500 |
| Shell Material |
Steel |
| Shell Plating |
Tin |
| Shell Size |
B |
| Less Contact |
No |
| Mounting |
Through Hole |
| Contact Plating |
Gold Over Nickel |
| Contact Material |
Copper Alloy |
