| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Mfr | Hirose Electric Co Ltd |
| Series | FH10A |
| Package | Tube |
| Product Status | Obsolete |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 14 |
| Pitch | 0.039″ (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.118″ (3.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Solder Plating |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Actuator Material | – |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | – |
| Housing Color | Natural |
| Actuator Color | – |
| Mating Cycles | – |
کانکتور - Connector

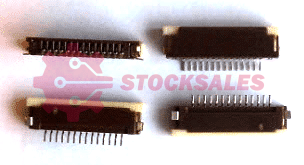

FH10A-14S-1SH
4,200,000 تومان
14 Position FFC, FPC Connector Contacts, Top 0.039″ (1.00mm) Surface Mount, Right Angle
دسترسی: 165 در انبار
