| Product Attribute | Attribute Value |
| Manufacturer: | Radiall |
| Product Category: | RF Connectors / Coaxial Connectors |
| RoHS: | Details |
| Product: | Panel Receptacles |
| RF Series: | SMA |
| Gender: | Jack (Socket) |
| Impedance: | 50 Ohms |
| Maximum Frequency: | 18 GHz |
| Termination Style: | Solder |
| Orientation: | Straight |
| Polarity: | Standard |
| Mounting Style: | Flange Mount |
| Cable Type: | – |
| IP Rating: | – |
| Packaging: | Bulk |
| Body Finish: | Gold |
| Body Material: | Stainless Steel |
| Body Style: | Flange |
| Brand: | Radiall |
| Contact Material: | Beryllium Copper |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000 MOhms |
| Mating Cycles: | 500 |
| Maximum Operating Temperature: | + 165 C |
| Minimum Operating Temperature: | – 65 C |
| Product Type: | RF Connectors / Coaxial Connectors |
| Factory Pack Quantity: | 100 |
| Subcategory: | RF Interconnects |
| Voltage Rating: | 500 V |
| Part # Aliases: | R125.464.000 |
RF Coaxial
R125464000
تماس جهت استعلام قیمت واردات

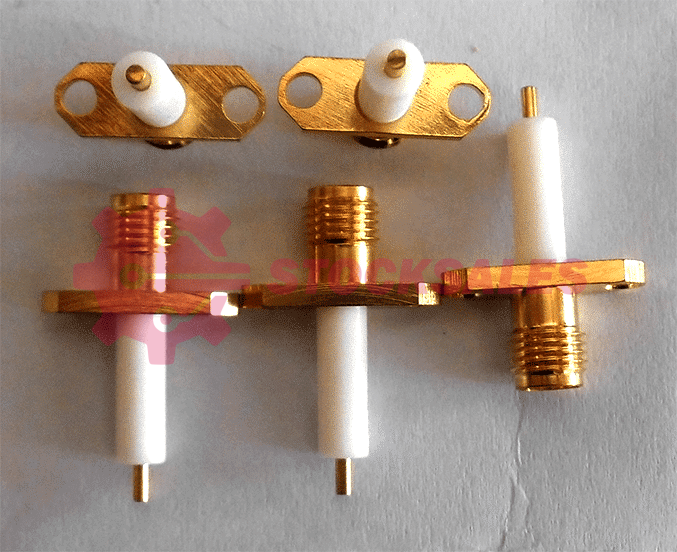

RF Connectors / Coaxial Connectors SMA / 2 HOLE FLANGE JACK RECEPTACLE WITH CYLINDRICAL CONTACT
در انبار موجود نمی باشد
توضیحات
توضیحات تکمیلی
| سازنده |
|---|
